Mazda MX5 ND (2016+) - Subwoofer Speaker Bracket kit

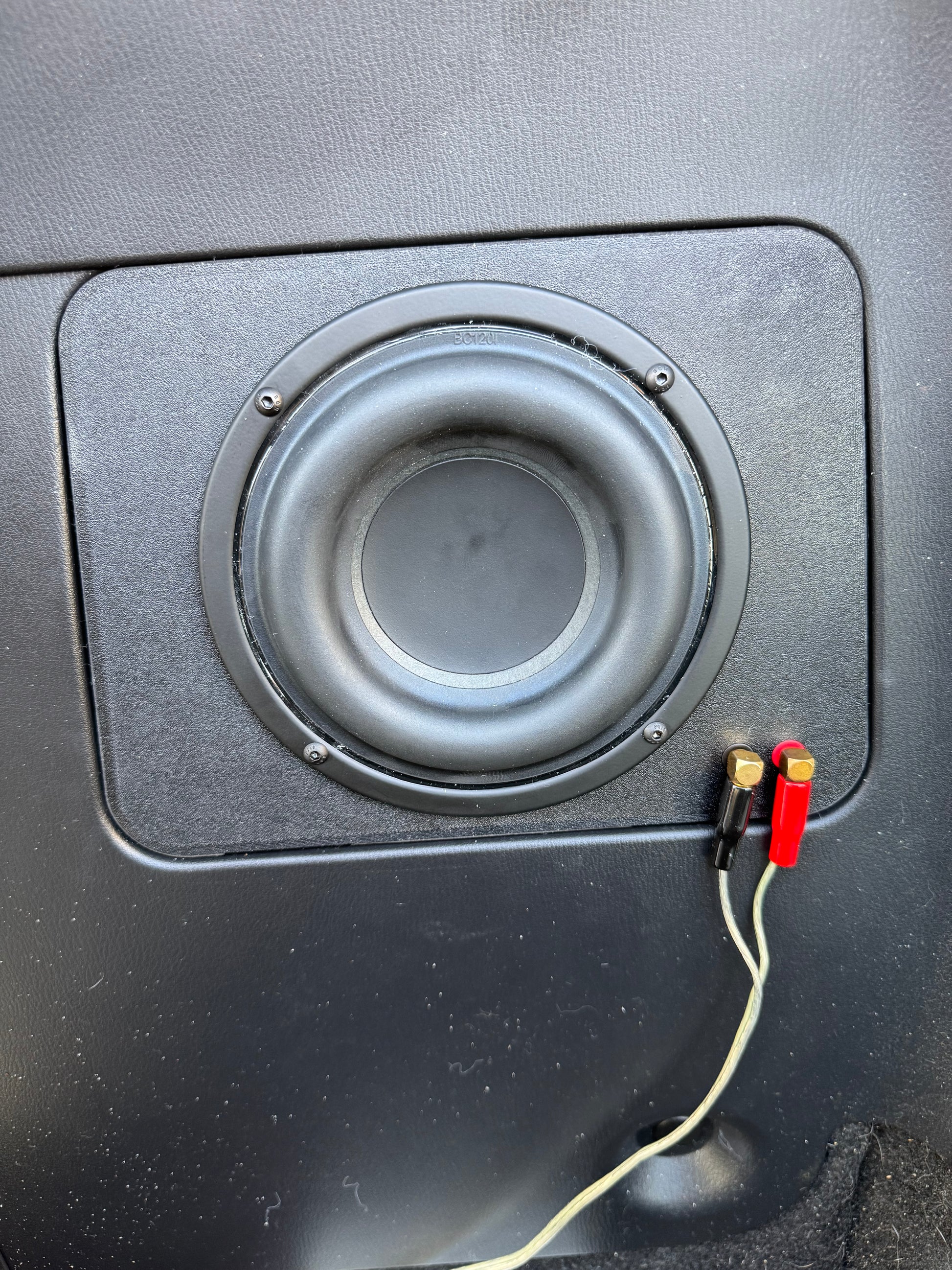

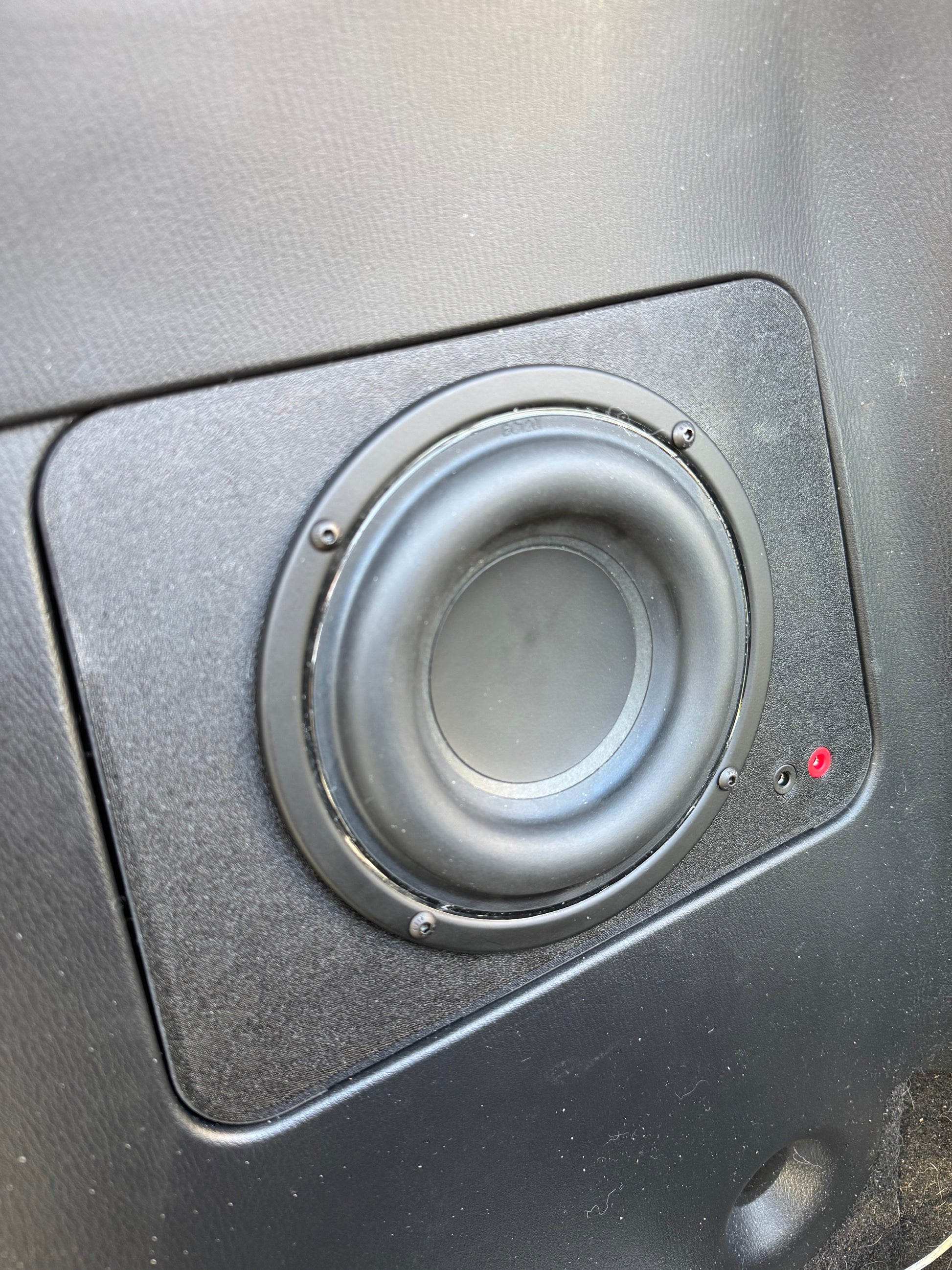

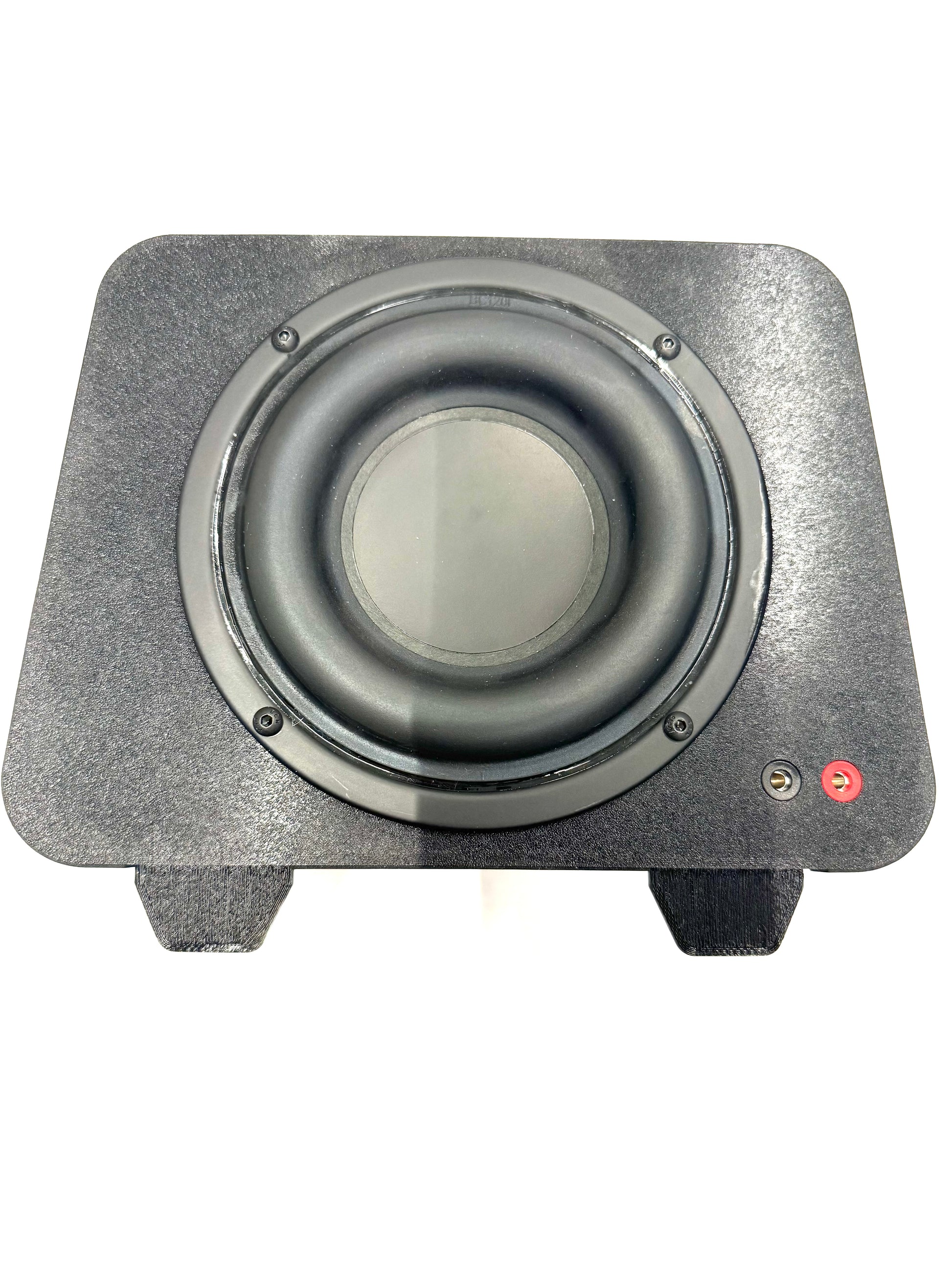

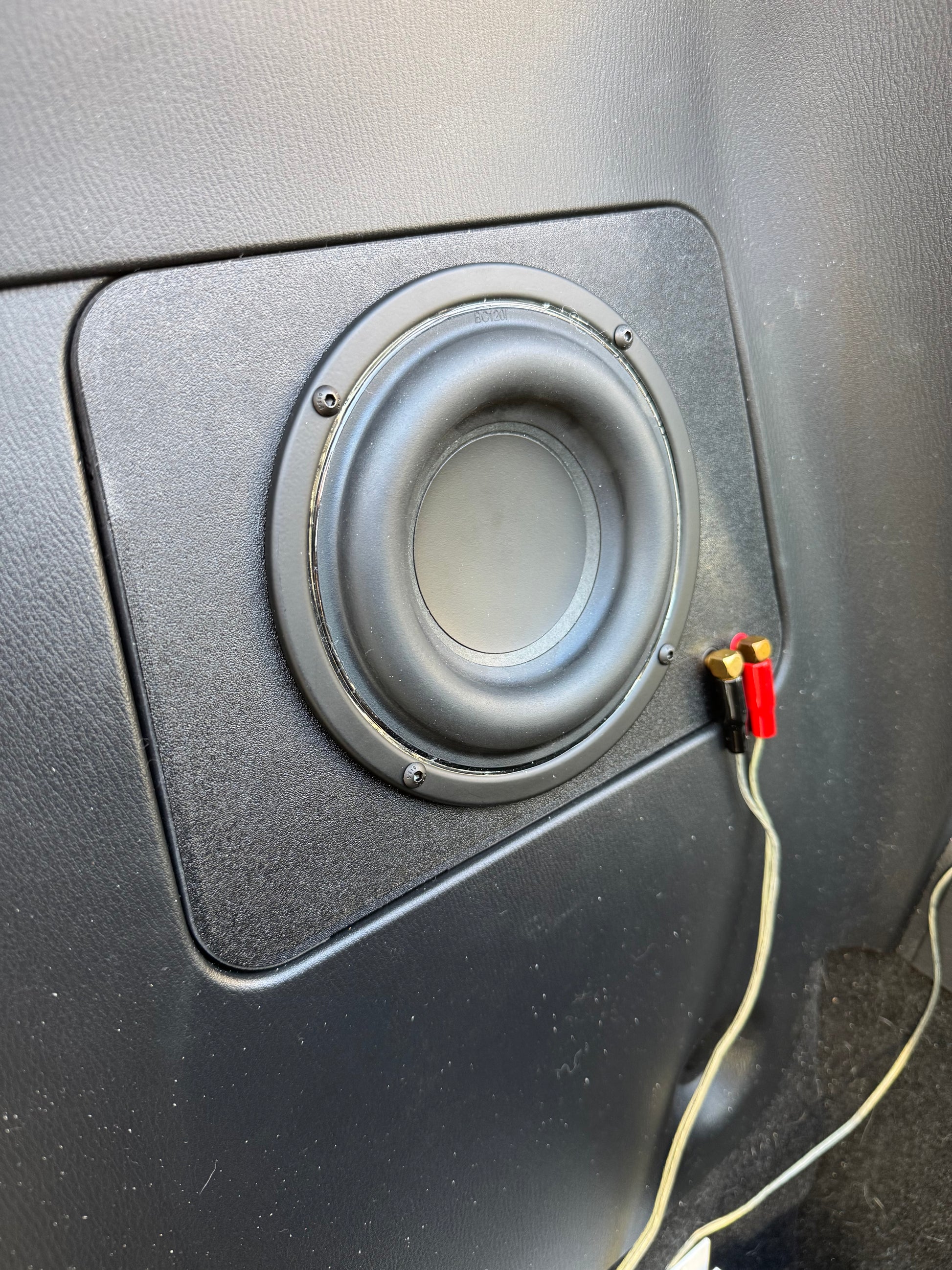

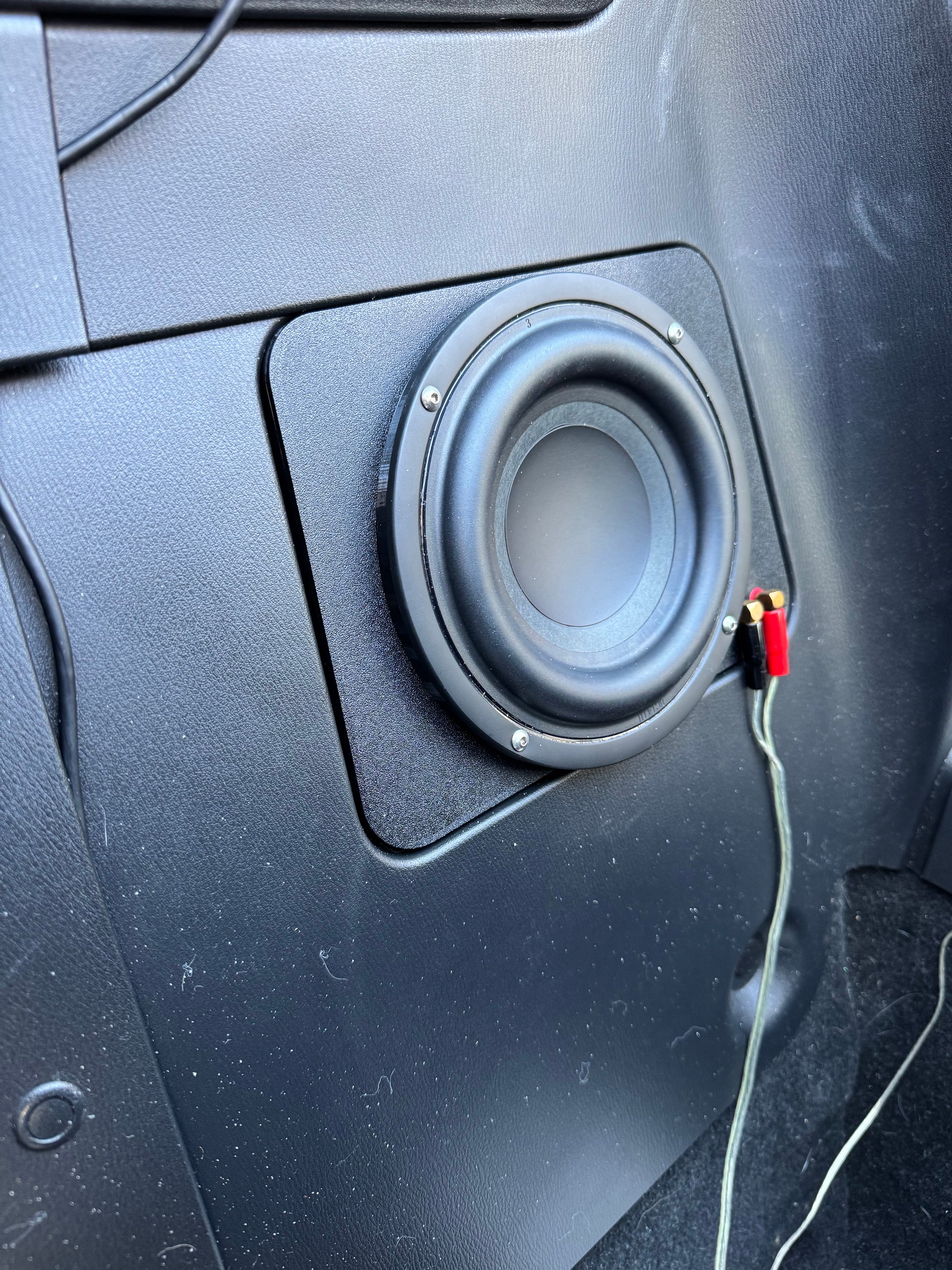

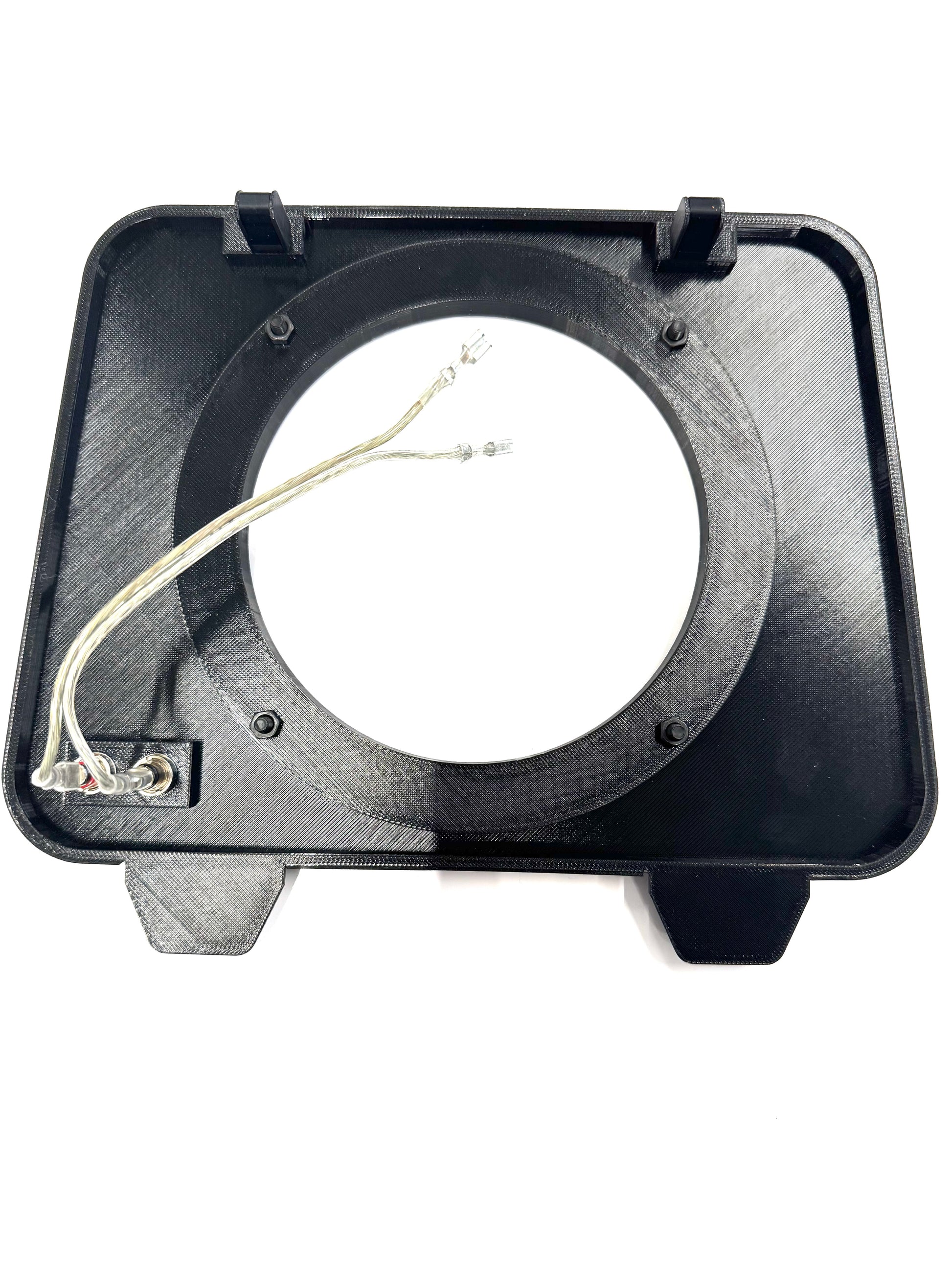

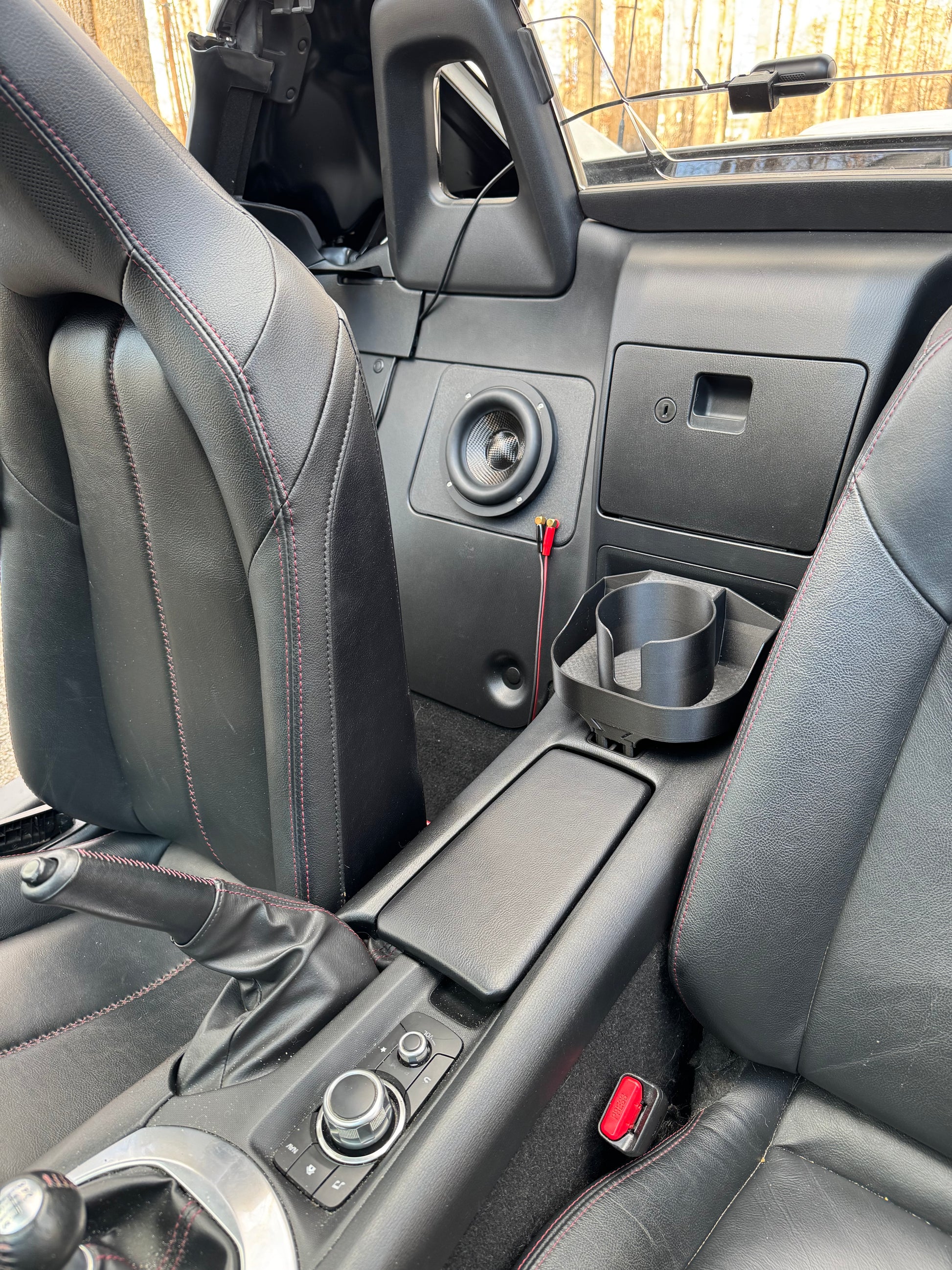

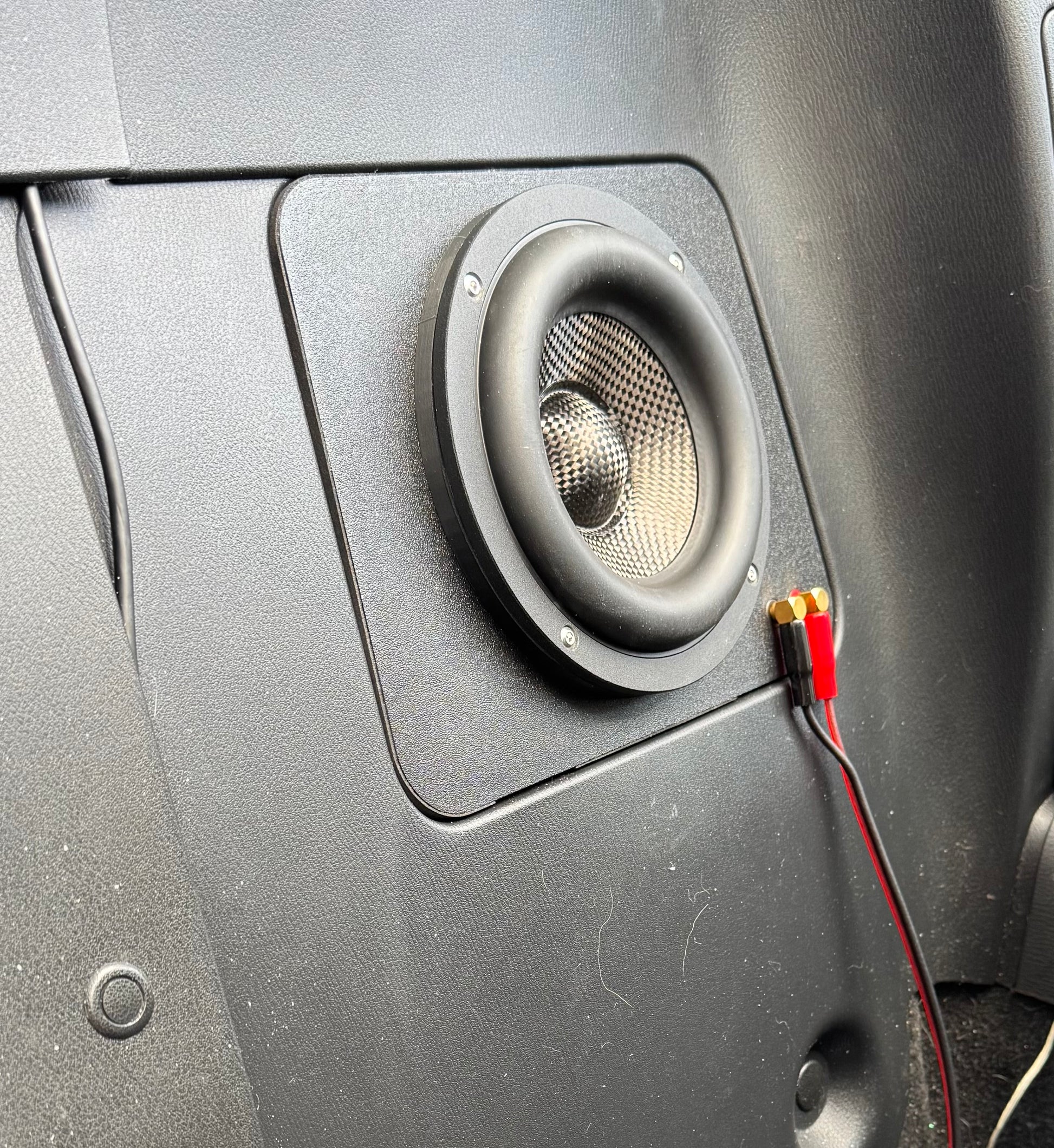

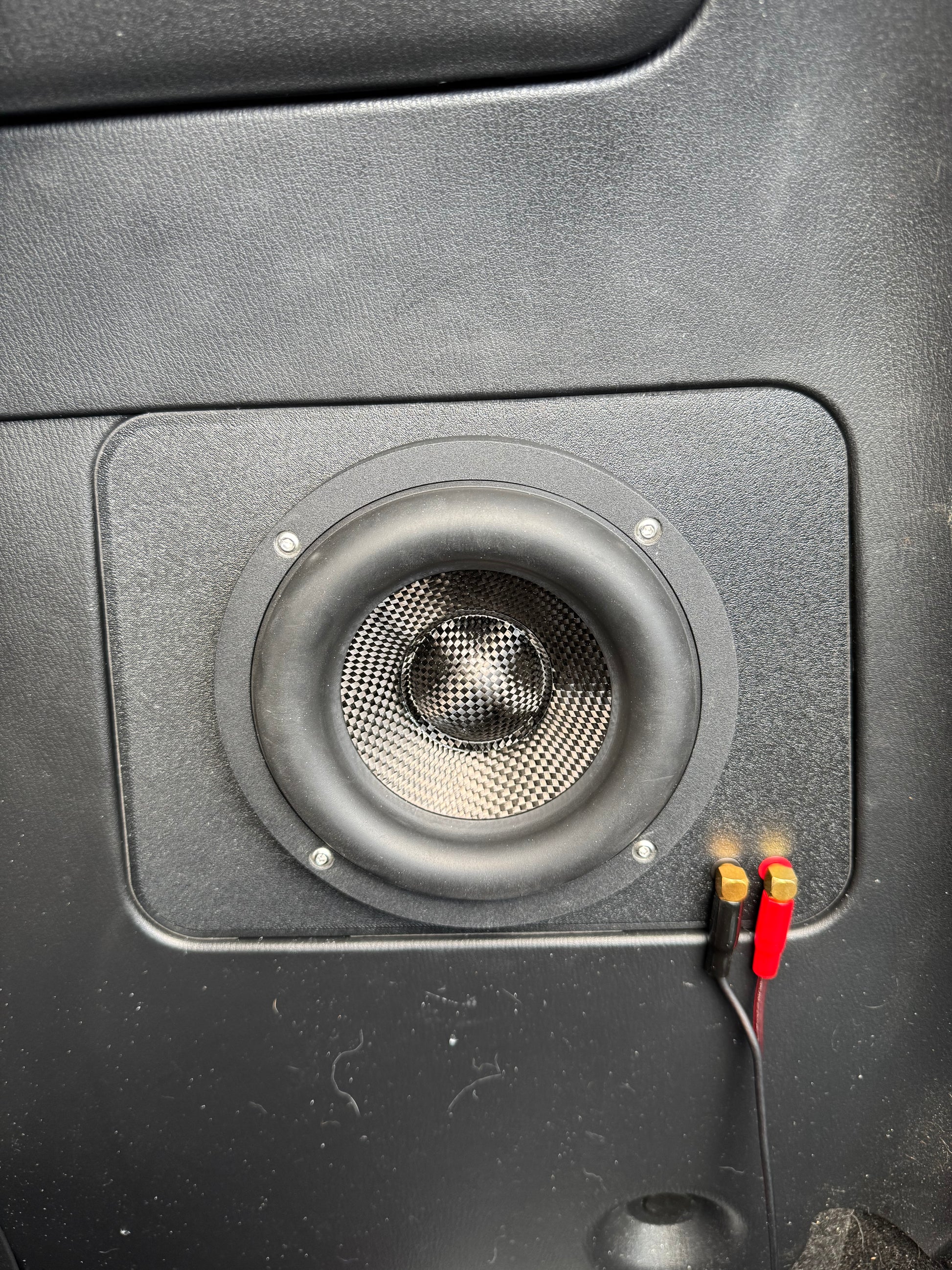

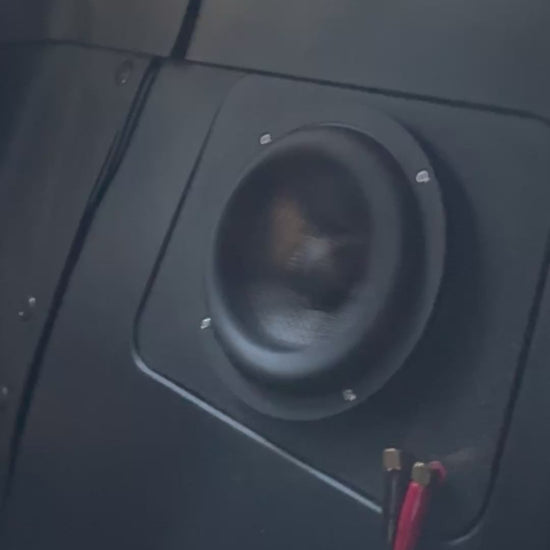

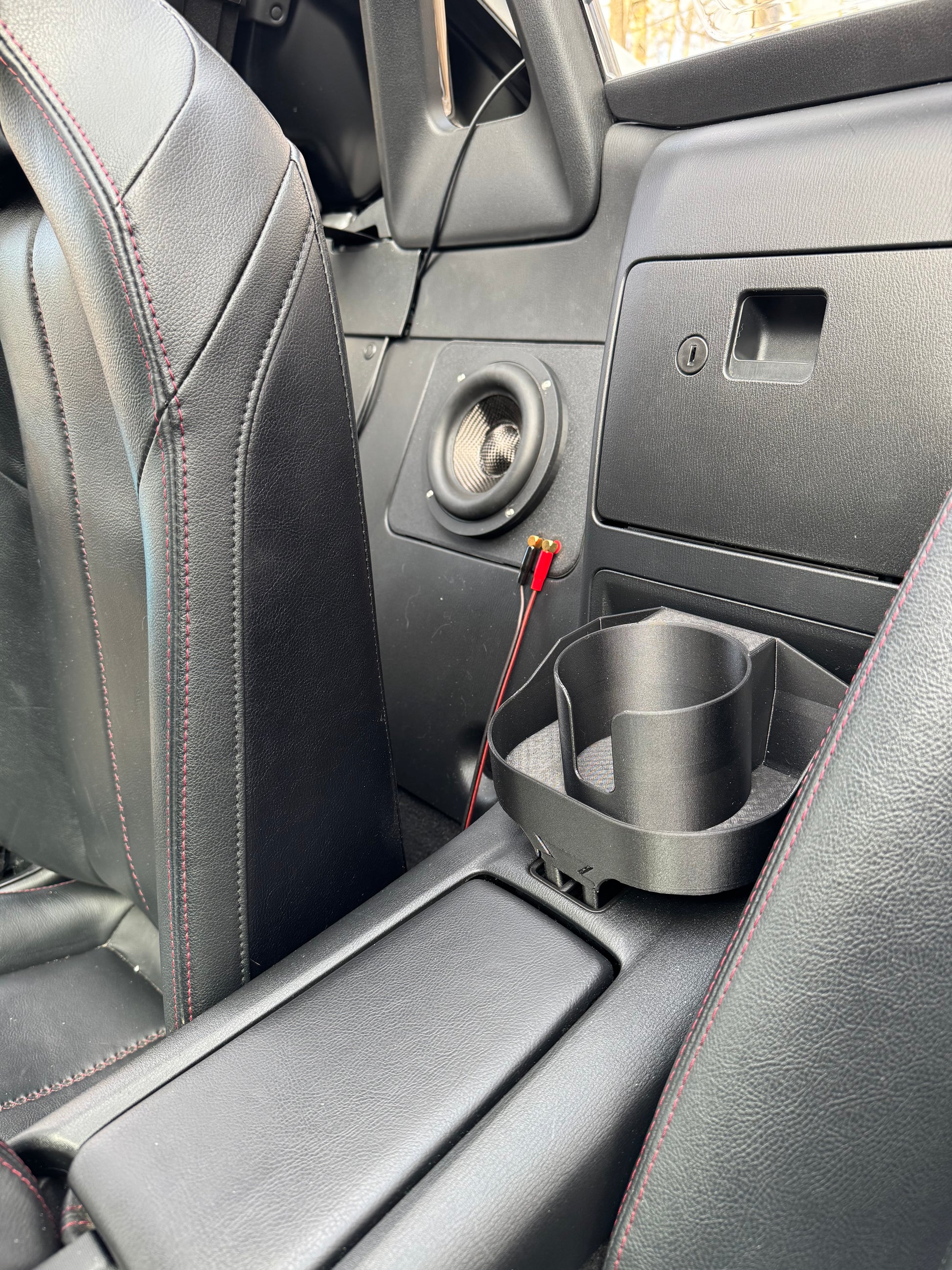

Description: Engineered for the 2016+ Mazda MX5 ND, this speaker mounting solution accommodates the Tang Band W5-1138SMF 5-1/4", Tang Band W6-1139SIF 6-1/2", or a Dayton Audio DCS165-4 6-1/2" subwoofer enabling seamless integration into the passenger-side storage compartment. The bracket replaces the factory latch compartment door while preserving the compartment's functionality without drilling or cutting. These subwoofers represents the optimal fit for this speaker bracket and storage space, available separately through Parts Express. Installation positions the Subwoofer discreetly behind the passenger seat without compromising interior space or aesthetics. To assist with preventing rattle, sealing foam tape is applied along the edges. Included in this kit is the 90 degree right angle Banna plugs that fit 18 awg or 14 awg wires.

Tang Band W5-1138SMF 5-1/4" subwoofer

• Speaker Mounting Hole Diameter: 121mm
• Speaker square screw hole diameter: 145mm | 4mm / M4
• Speaker total diameter: 155.80mm

Tang Band W6-1139SIF 6-1/2" Paper Cone Subwoofer Speaker

• Speaker Mounting Hole Diameter: 142 mm
• Speaker square screw hole diameter: 166.3 mm | 4mm / M4
• Speaker total diameter: 176.53mm

Dayton Audio DCS165-4 6-1/2" Classic Subwoofer 4 Ohm

• Speaker Mounting Hole Diameter: 143 mm
• Speaker square screw hole diameter: 158 mm | 4mm / M4
• Speaker total diameter: 167mm

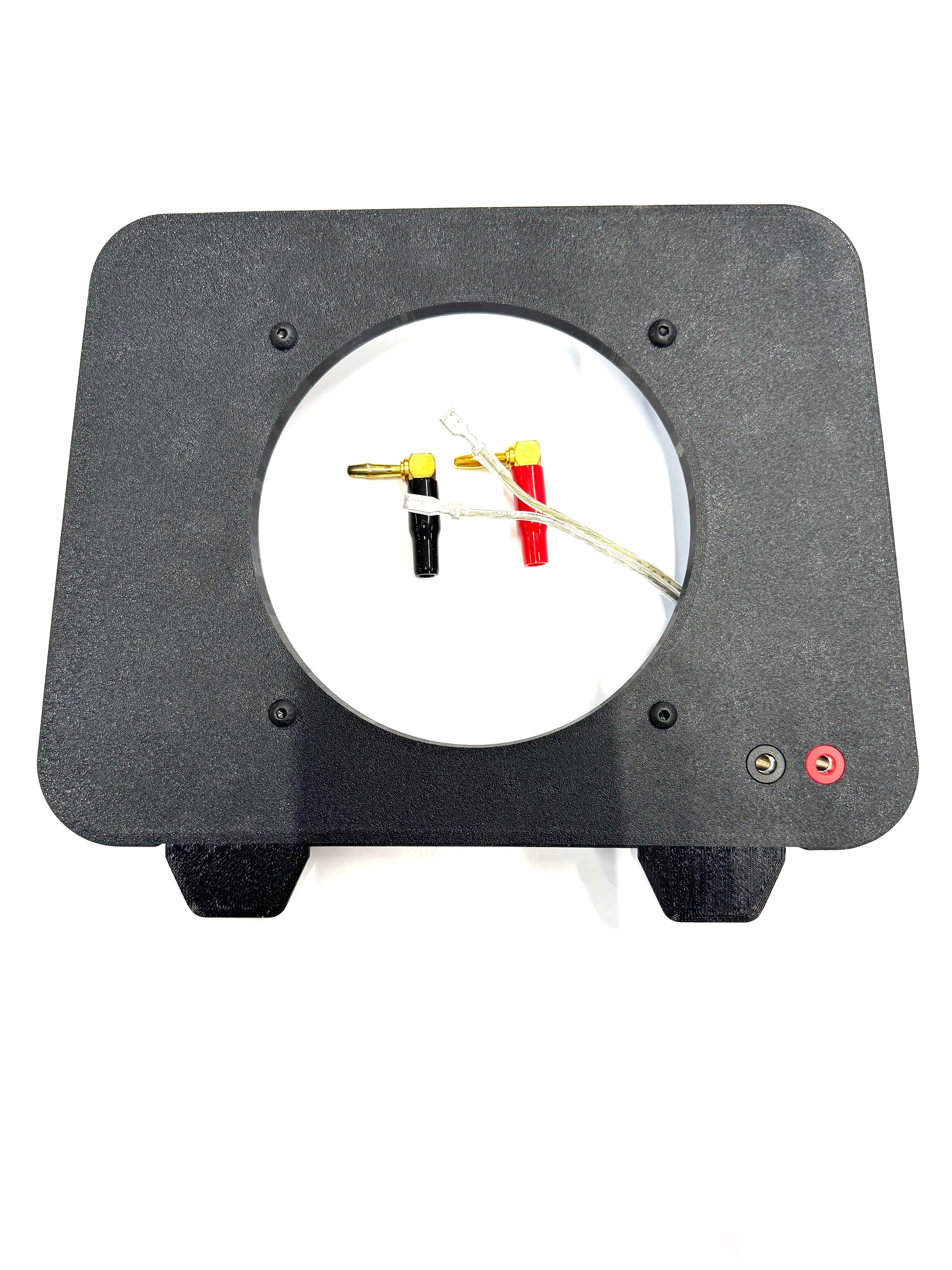

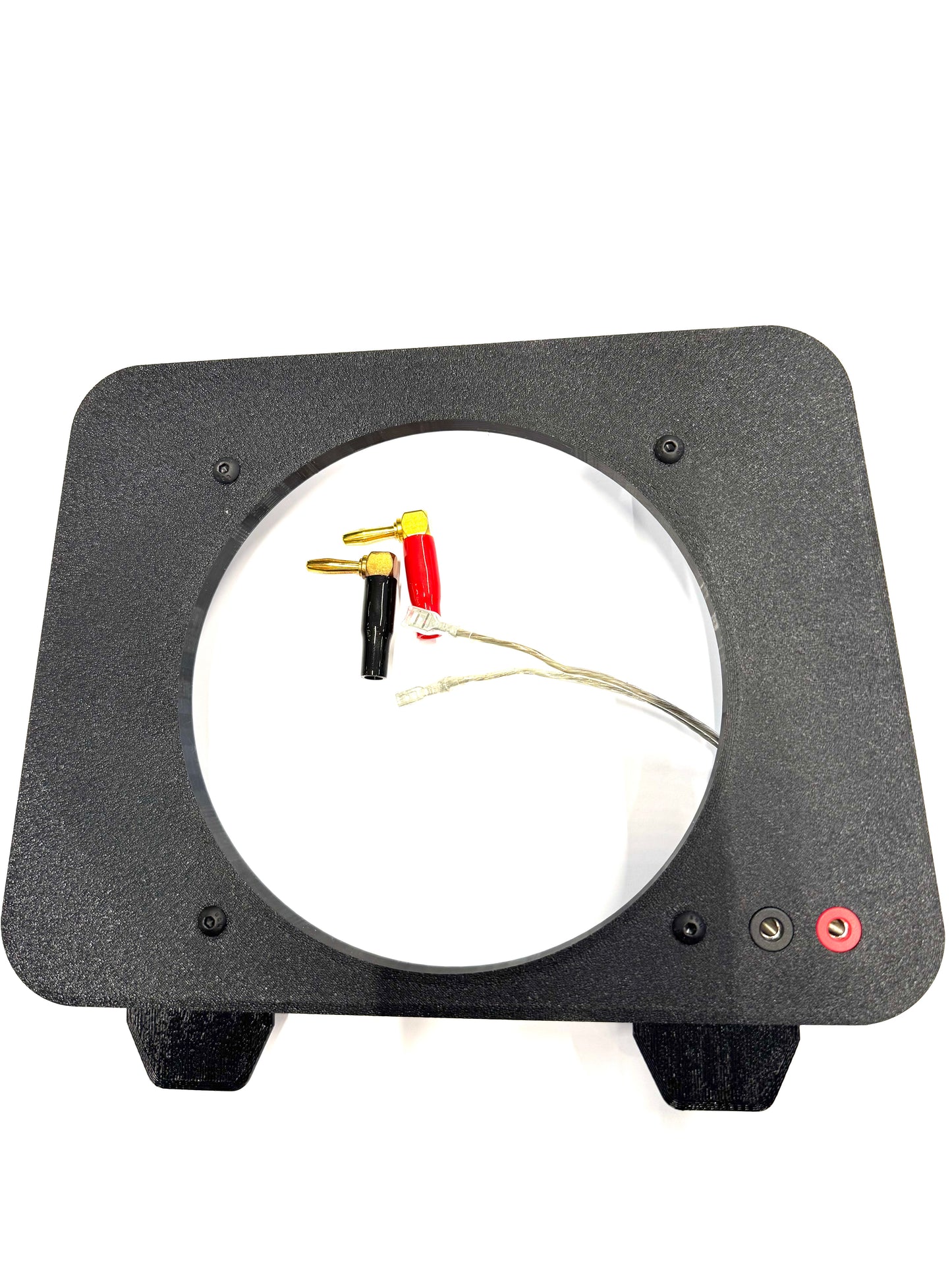

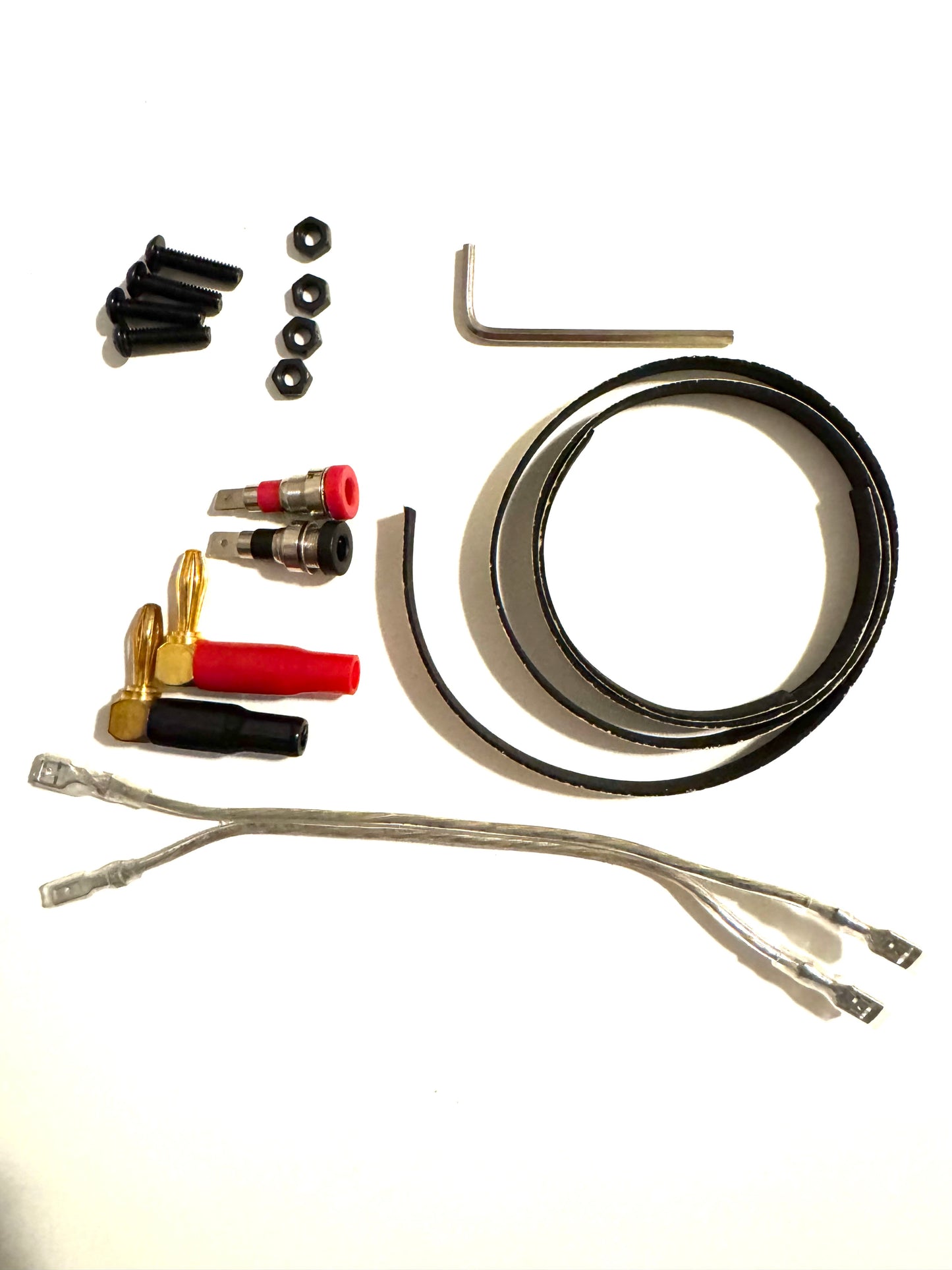

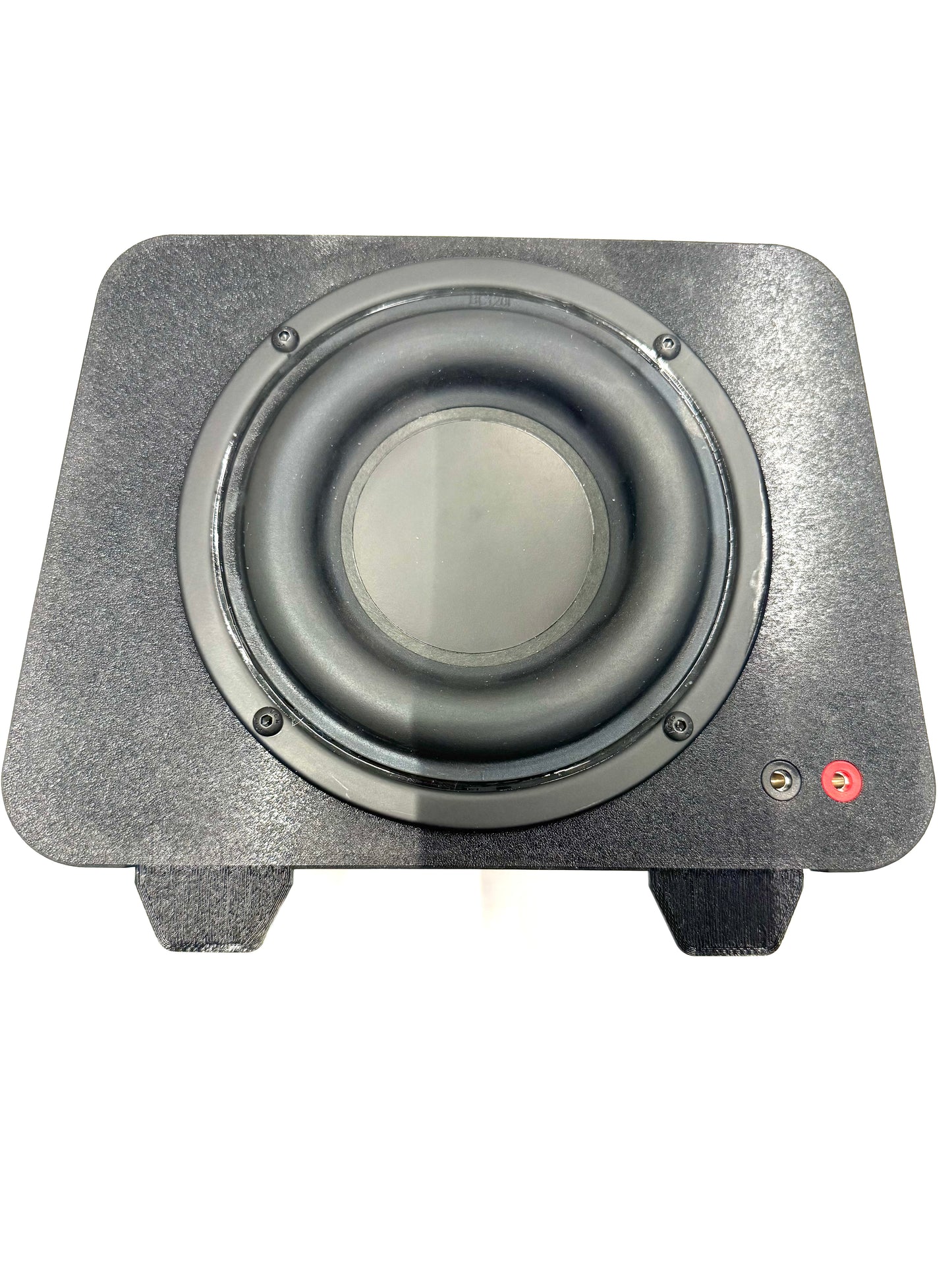

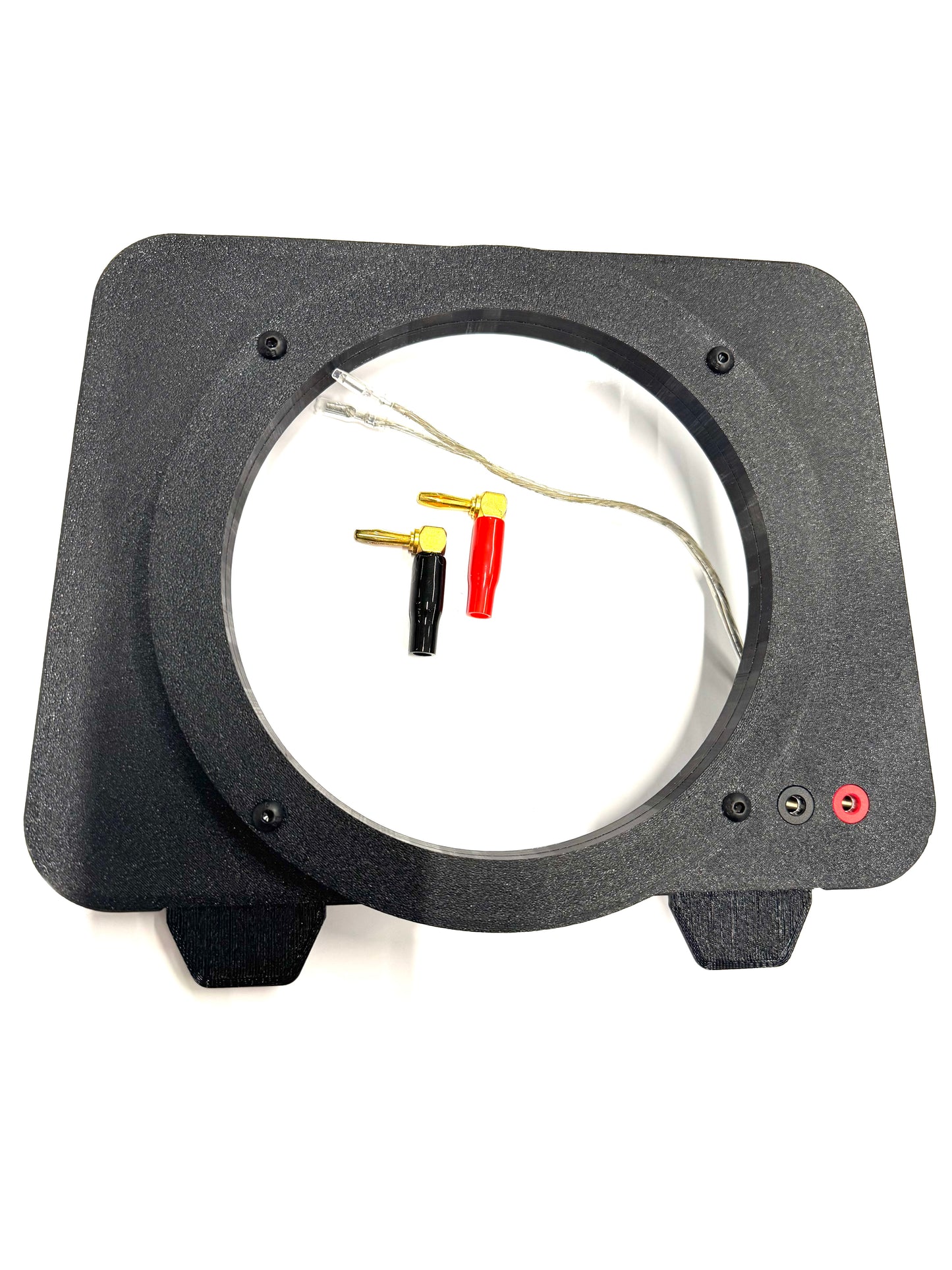

MX5 ND 2016+ 5.25 inch Tang Band Subwoofer Speaker Bracket kit Includes:

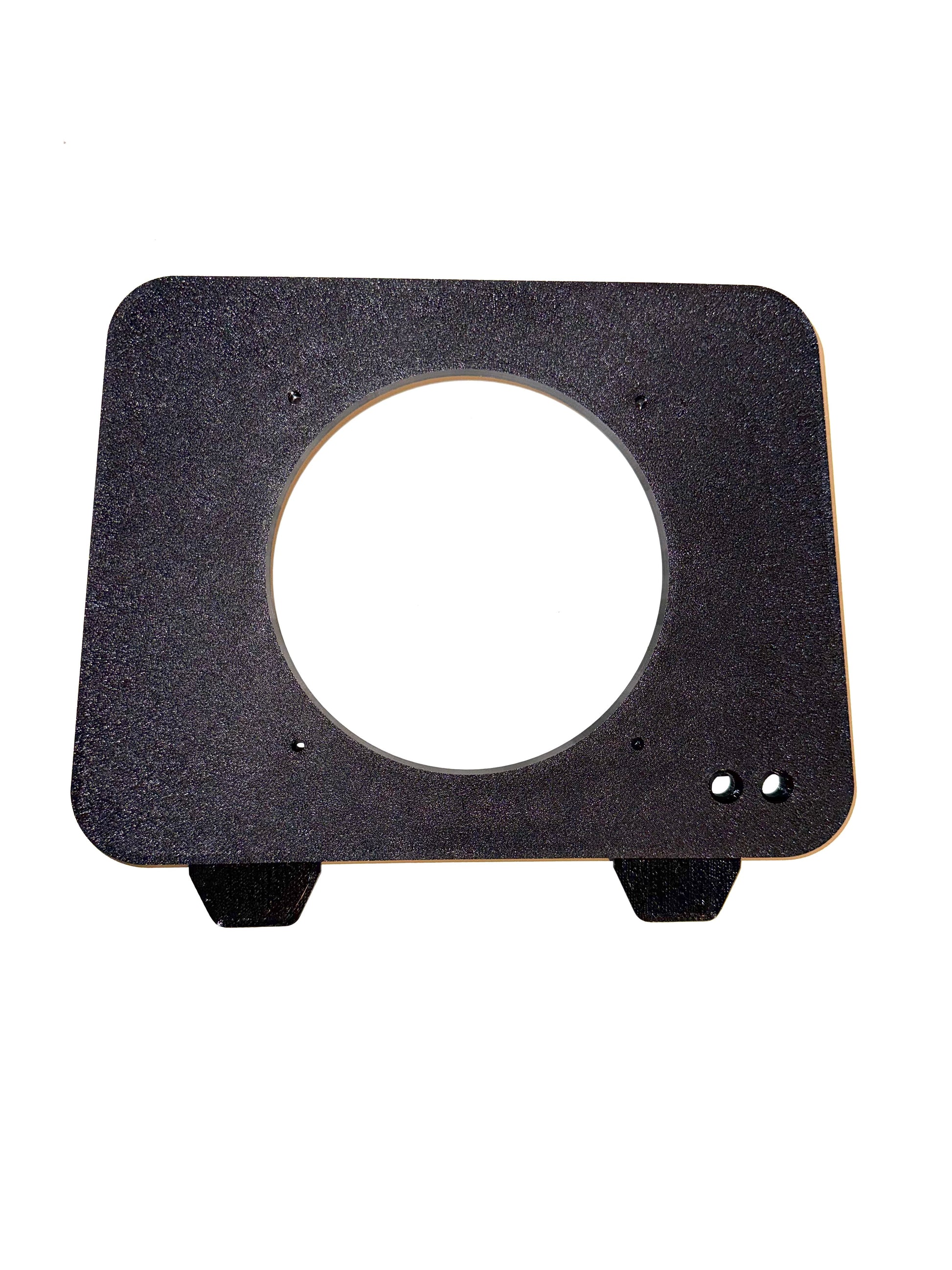

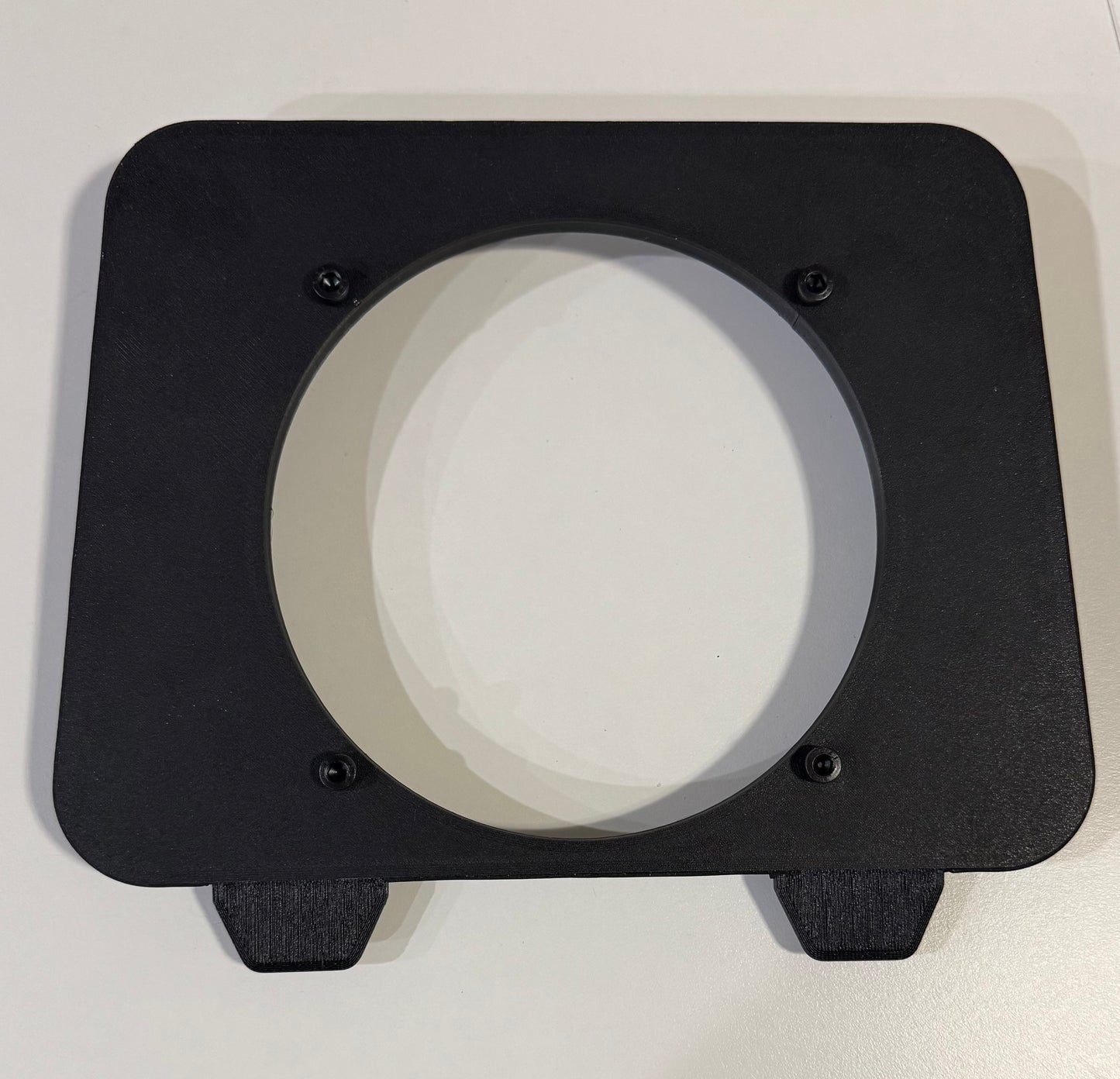

• 1x - Subwoofer Speaker Bracket
• 4x - M4 x 16mm Thread Pitch 0.7 mm screws
• 4x - M4 Hex nut

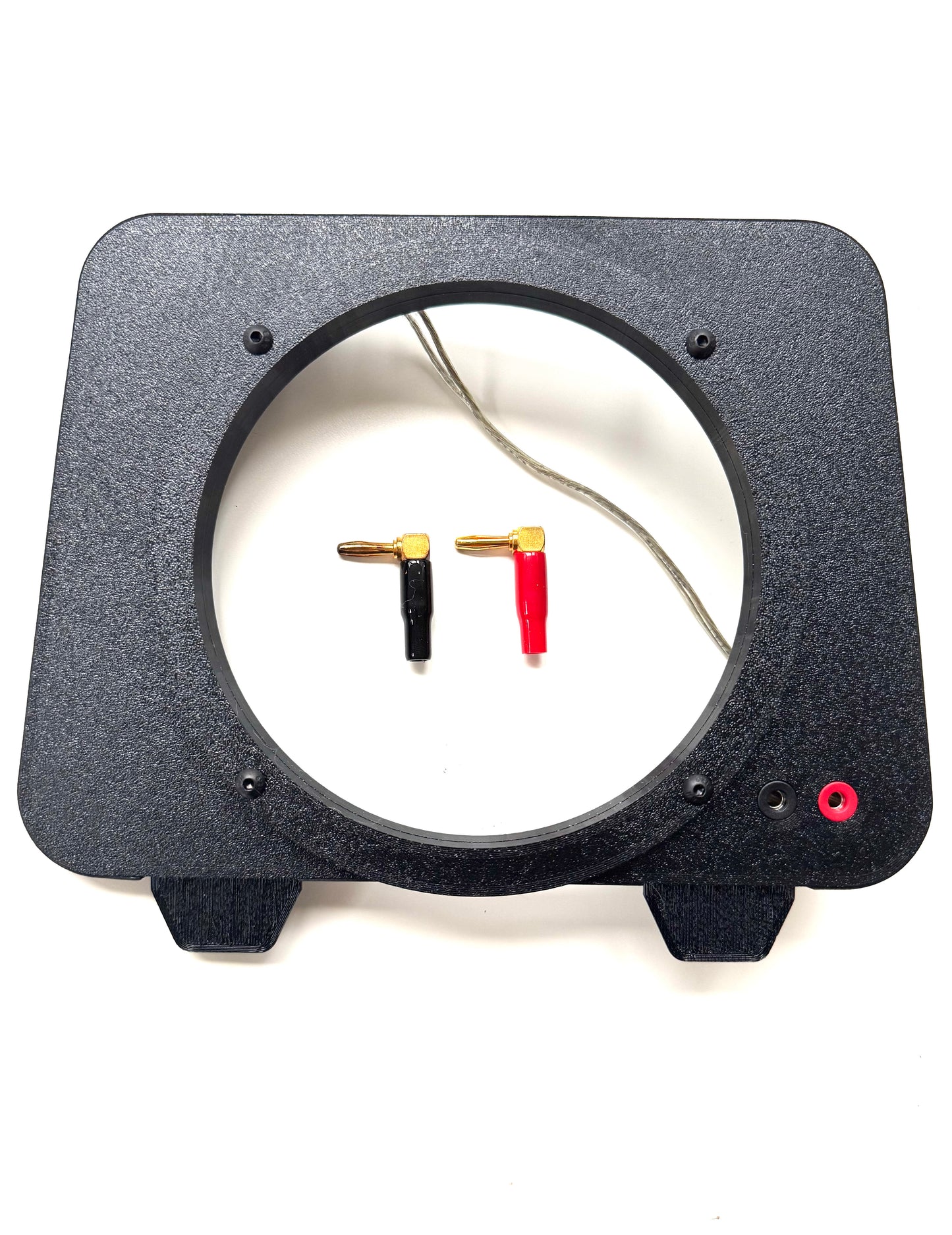

• 2x - Black and Red 90 Degree Right Angle Banana Plugs

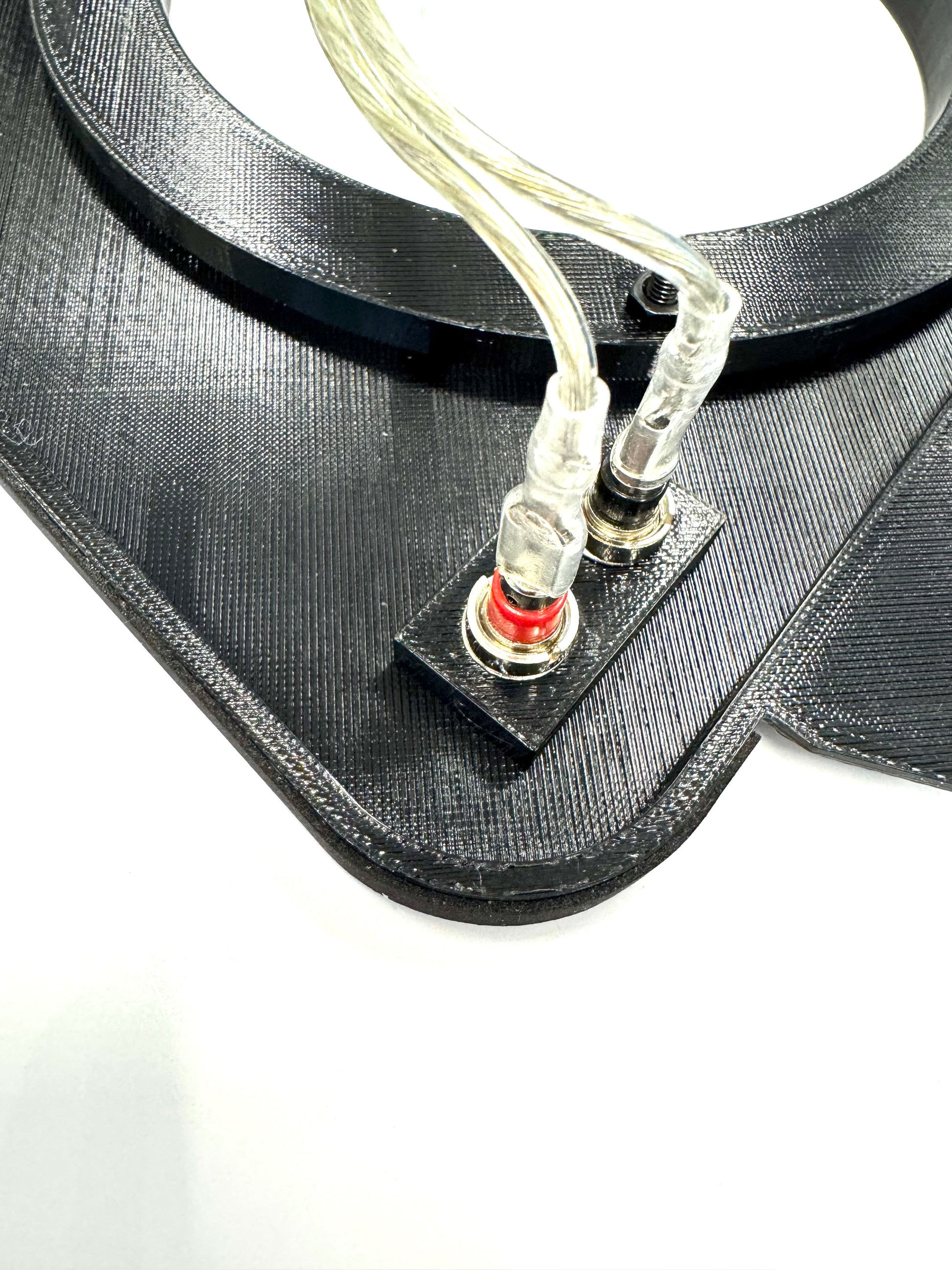

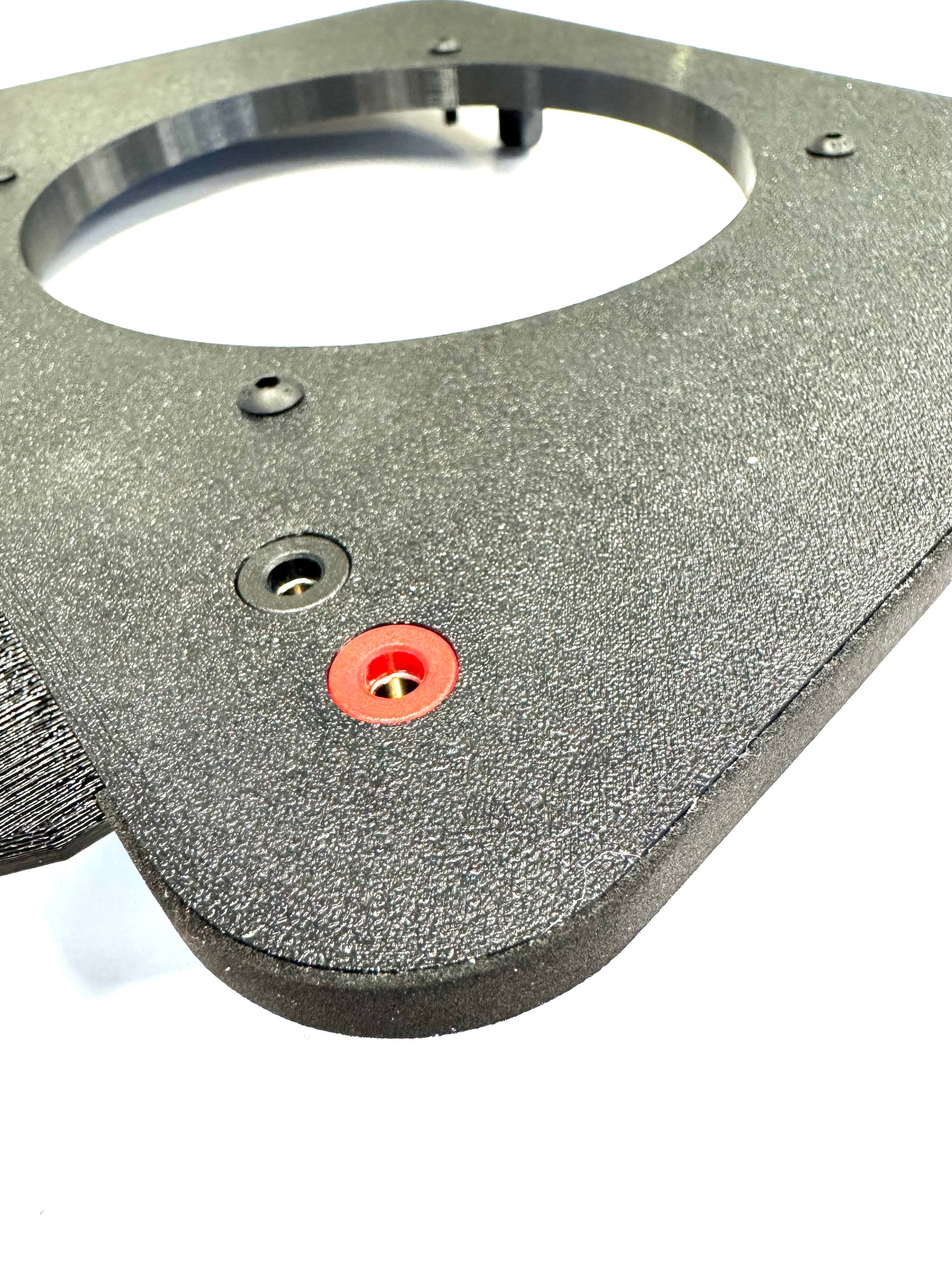

• 2x - Black and Red 4mm Banana Jack Socket

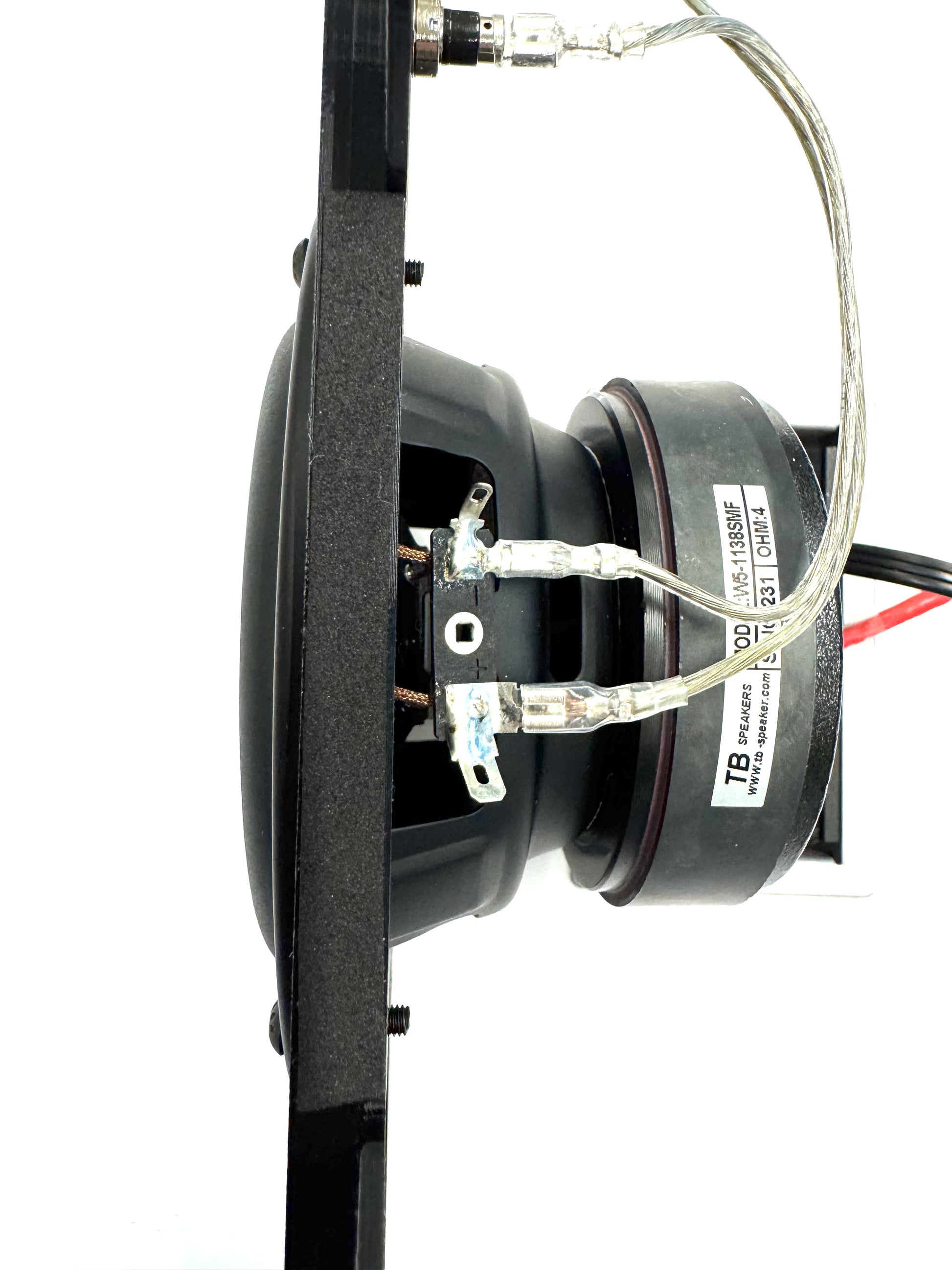

• 1x - 6in 18 awg Speaker wire, pre-crimped 4.8mm and 2.8mm spade connectors with insulating sleaves
• 26in of Sealing Foam Tape 8mm Wide, 1mm Thick (pre installed)
• 2.5mm Alen Key

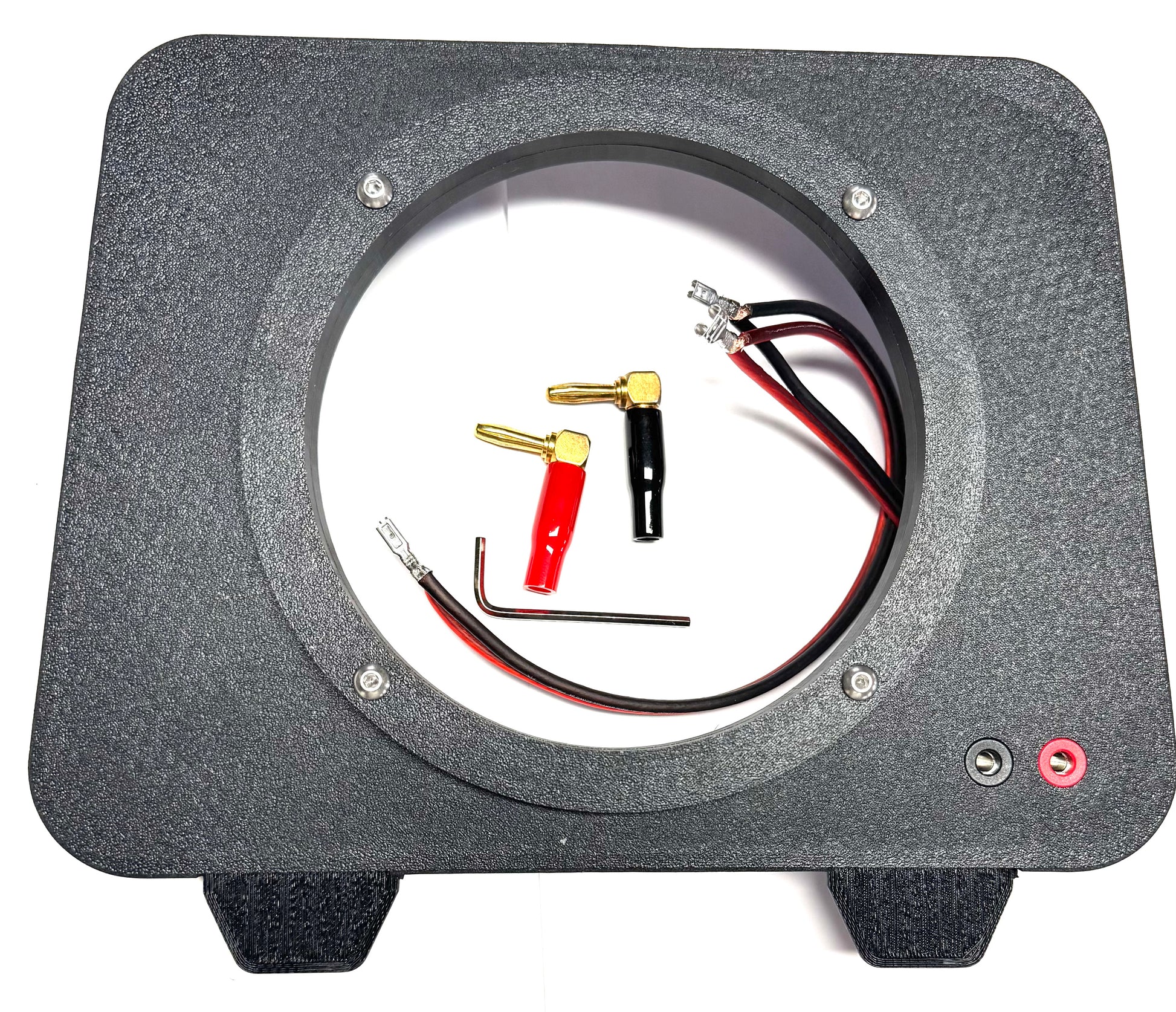

MX5 ND 2016+ 6.50 inch Tang Band and Dayton Audio Subwoofer Speaker Bracket kit Includes: Everything the 5.25in kit includes except uses

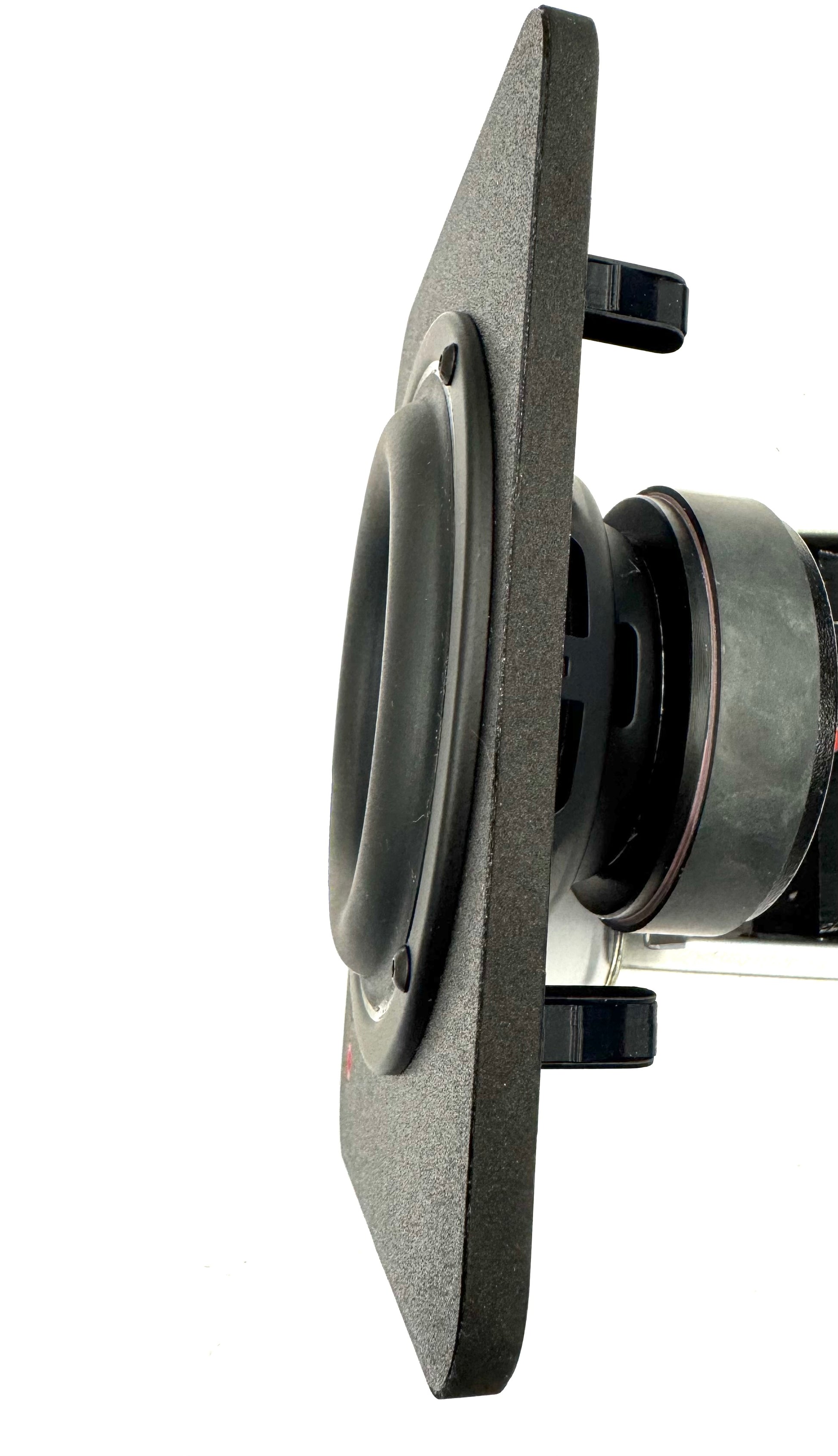

• 1x - Subwoofer Speaker Bracket with 7mm riser ring
• 4x - M4 x 20mm Thread Pitch 0.7 mm screws
• 1x - 8in 18 awg Speaker wire, pre-crimped 4.8mm and 2.8mm spade connectors with insulating sleaves

Fits: 2016+ Mazda MX5 ND

Material: PETG (Polyethylene Terephthalate Glycol)

Color: Black

Material Description: PETG is a type of thermoplastic polyester that is known for being durable, strong, and versatile.

Material Softening temperature: Most PETG filaments start to soften and lose strength in the 70°C | 158°F to 85°C | 185°F range.
Vicat Softening Temperature: 79°C  | 174.2°F
Heat deflection temperature: The heat deflection temperature is at 70°C | 158°F . This is the temperature at which the material begins to deform under a load.
